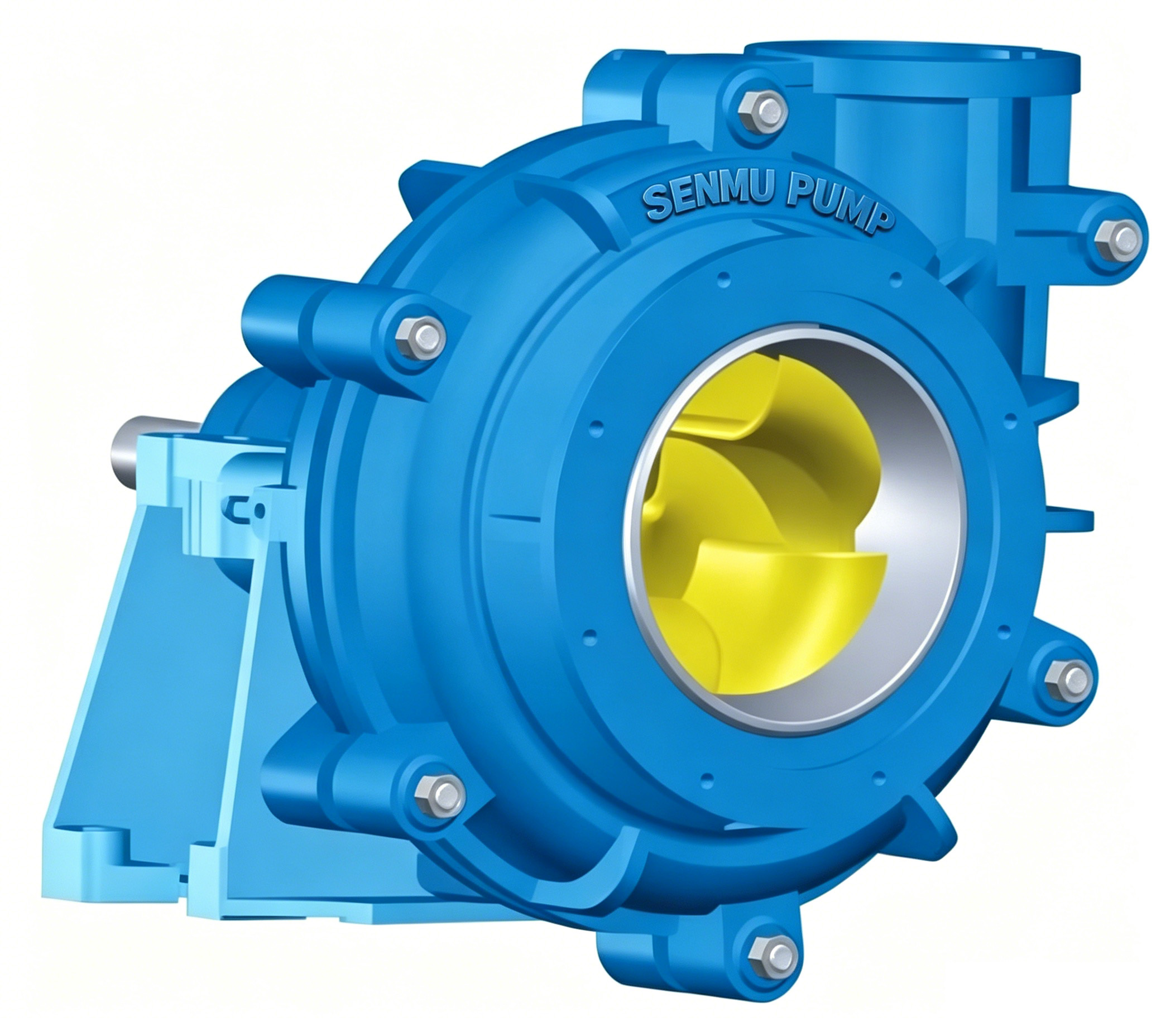

Mineral Processing Froth Slurry Pump
Product Details
SMF Series Froth Pumps – Product Overview
Product Introduction
The SMF Series froth pumps are heavy-duty, horizontal centrifugal pumps specifically engineered for handling troublesome froth and viscous slurries in mineral processing applications. Based on the proven SMH Series heavy-duty slurry pump platform, the SMF pump has been modified with a unique impeller design and oversized inlet to effectively handle froth that would otherwise air-bind conventional pumps .
In flotation processes, mineral-bearing froth contains fine particles suspended in air bubbles. These resilient bubbles can cause standard slurry pumps to lose prime, surge, or become air-locked, leading to inefficient operation and increased downtime. The SMF Series solves this challenge with a flow inducer impeller featuring vanes that protrude into the suction intake, pre-swirling the froth and dissipating air bubbles before they can inhibit slurry flow.
Key Features & Benefits
Specialized Froth-Handling Design
Inducer impeller with oversized inlet vanes that shear non-Newtonian slurries and draw froth into the pump
Large eye diameter reduces inlet velocities and lowers NPSH requirements
Open internal passages minimize internal turbulence and reduce air entrapment

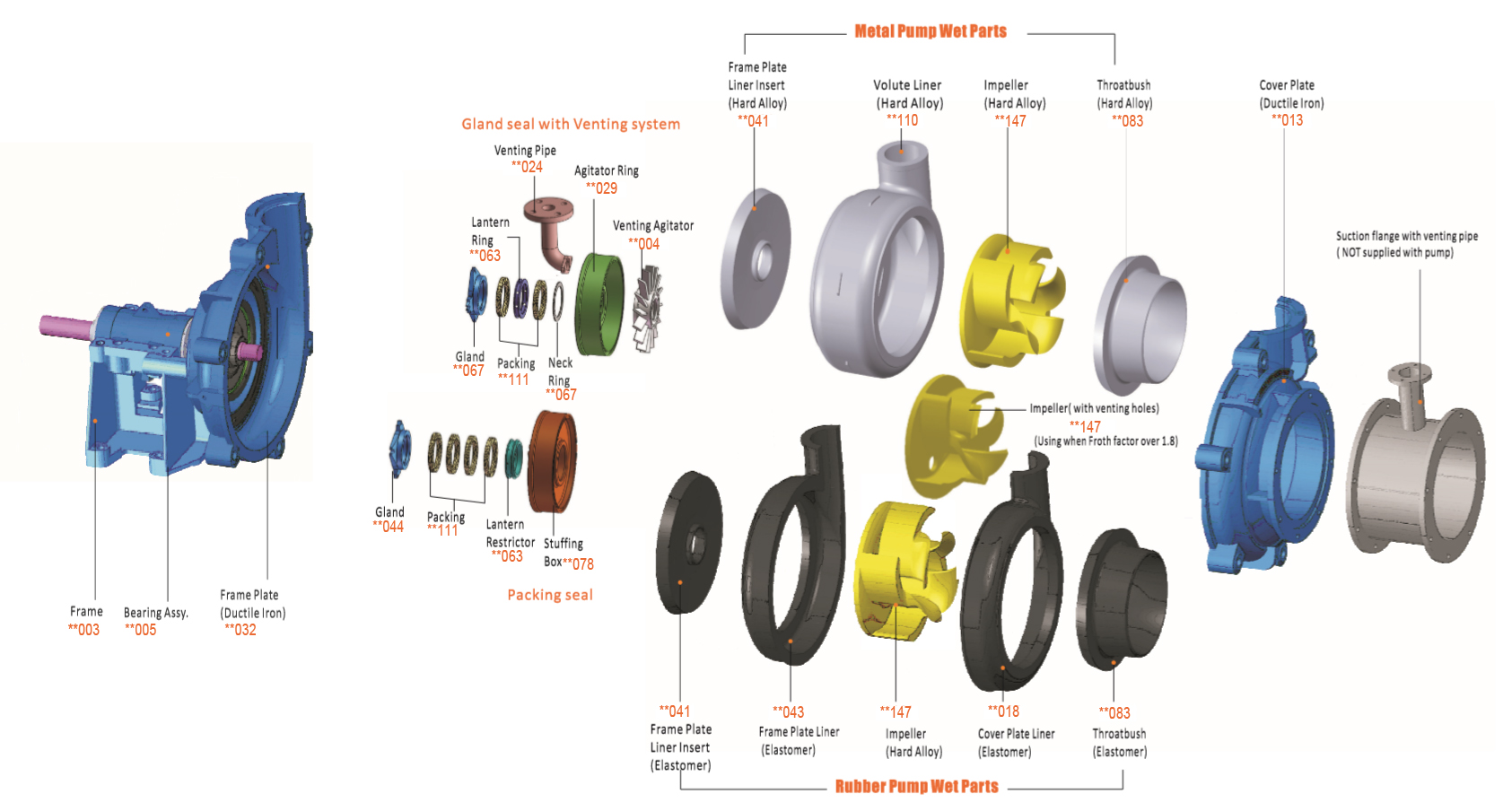

Exploded View Reference
