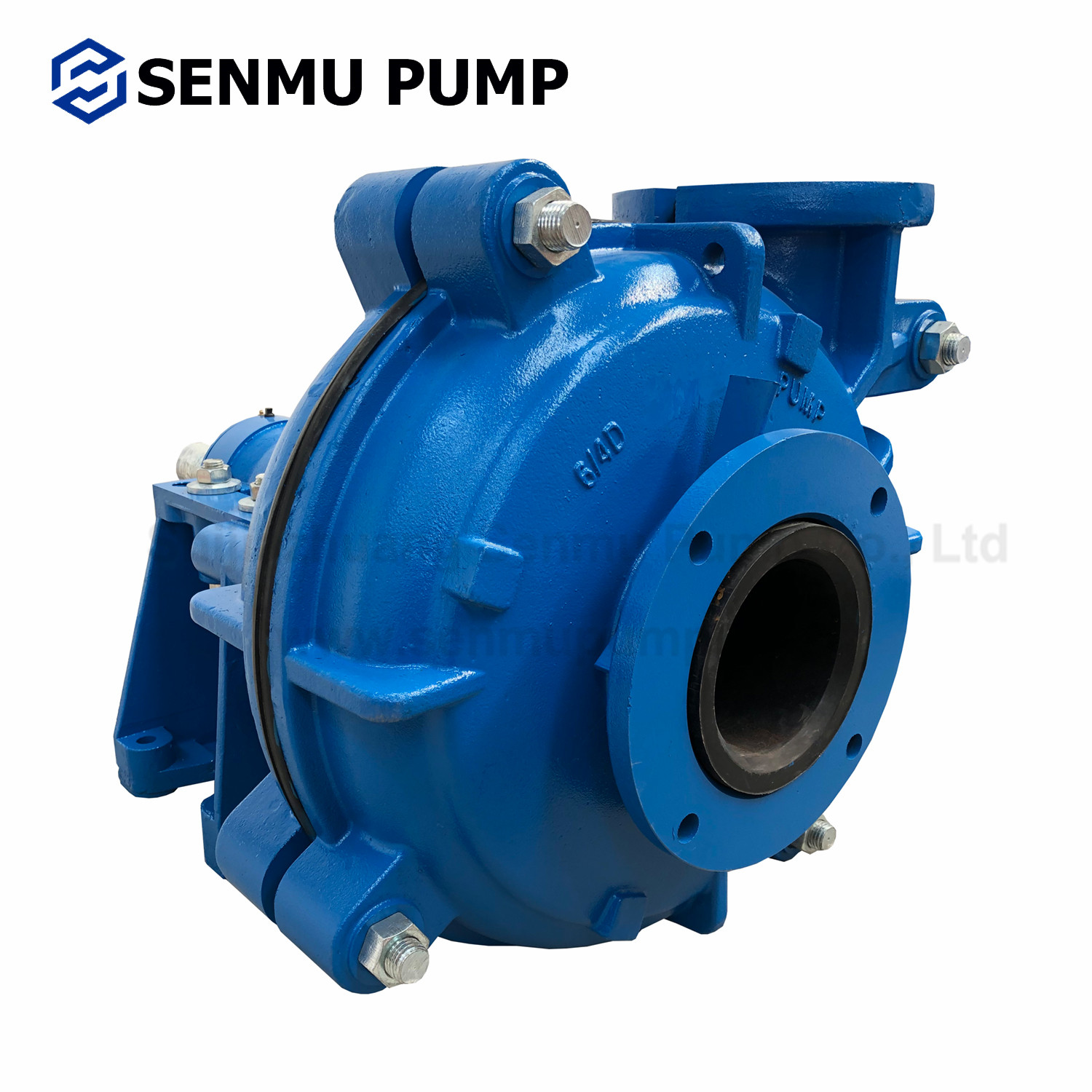

Centrifugal Slurry Pump
Rubber Lined Slurry Pumps – Ideal for Fine Particle & Corrosive Slurries
SMH(R) Pump Introduction
SMH(R) pumps are horizontal centrifugal pumps designed for continuous handling of highly abrasive, high-density slurries. Engineered with minimal maintenance requirements, these pumps help reduce downtime and keep your operations running efficiently. Their components are designed to maintain high efficiency throughout the wear life of the pump.
For chemical slurry applications, rubber-lined versions are available. Multiple rubber options allow you to select the best lining for your specific slurry characteristics and operating conditions.
SMH(R) pumps are horizontal centrifugal pumps designed for continuous handling of highly abrasive, high-density slurries. Engineered with minimal maintenance requirements, these pumps help reduce downtime and keep your operations running efficiently. Their components are designed to maintain high efficiency throughout the wear life of the pump.
For chemical slurry applications, rubber-lined versions are available. Multiple rubber options allow you to select the best lining for your specific slurry characteristics and operating conditions.
Product Details
Product Overview

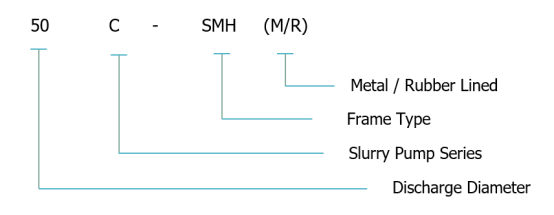

Notation:
Technical Information
| Specification | Details |
|---|---|
| Size Range (Discharge) | 1 inch to 18 inch (25 mm to 450 mm) |
| Capacity (Flow Rate) | Up to 5,040 m³/h |
| Head (Total Dynamic Head) | 3 – 45 m |
| Speed Range | 200 – 2,200 r/min |
| Max. Efficiency | Up to 80% |
| pH Range | 2.5 – 13 (depending on rubber compound) |

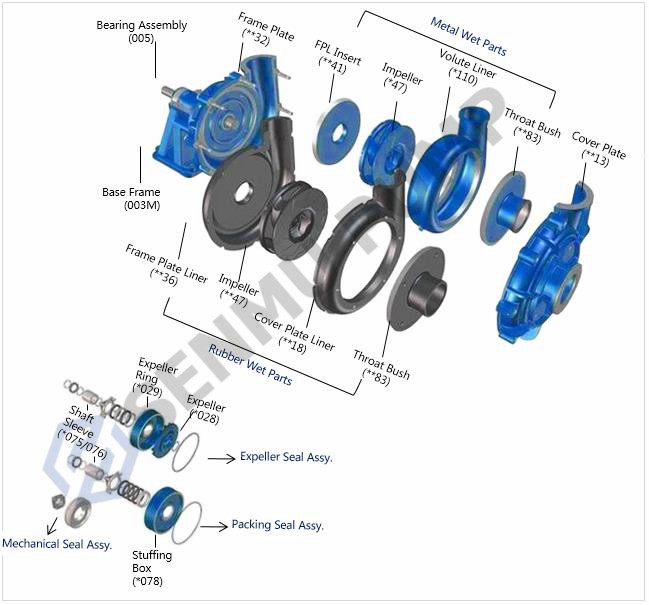

Exploded View Reference – SMH(R) Slurry Pump:

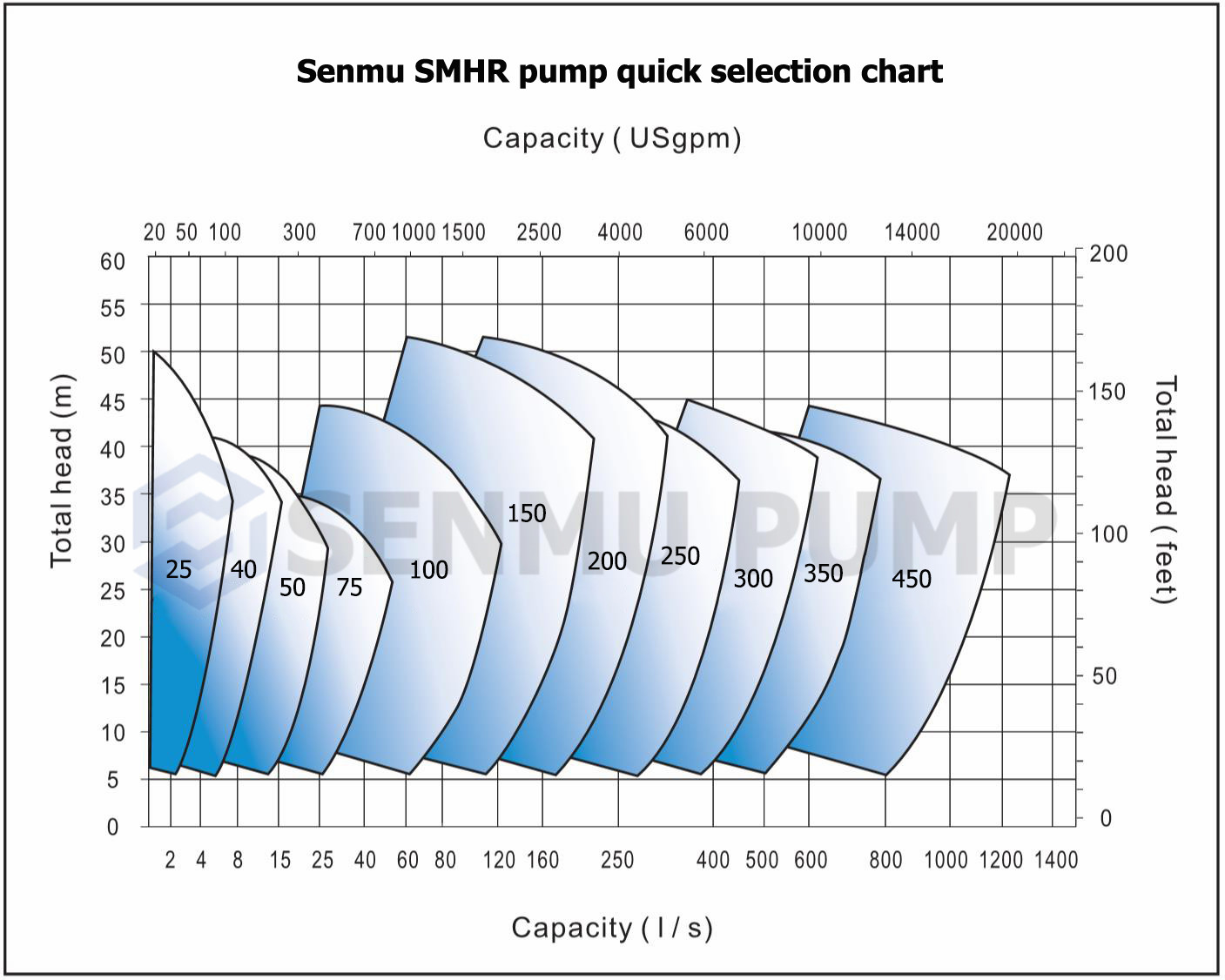

Performance Curve Reference – SMH(R) Slurry Pump :
Aplication
This system is ideal for various industries including:
Heavy MineralsMill DischargeCoal WashingCyclone FeedPower PlantChemical ProcessPaper and Pulp
